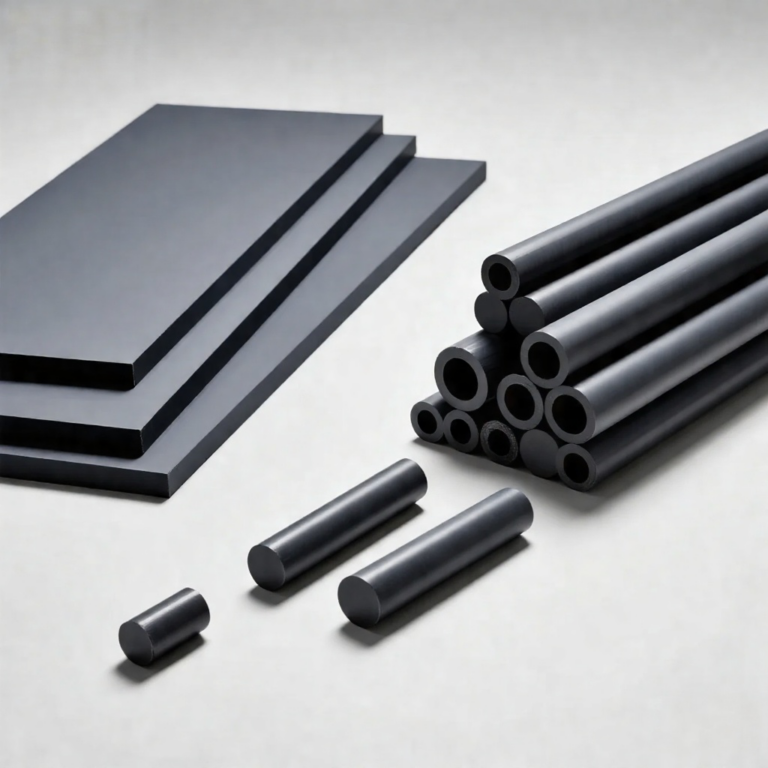

PEEK CF30/Carbon Reinforced Rod, Sheet, Tube

Material Name:PEEK 30% carbon fiber modified

Color: black

Molding Method: extrusion / compression

Stock Shapes: rod / sheet / tube

Cut to Size: available

Free Sample: available

Payment: T/T, VISA, MasterCard, Western union, PayPal

PEEK 30% carbon fiber filled

PEEK CF30 black is a modified material based on the PEEK virgin which is filled with 30% carbon fiber. The carbon fiber reinforcement improves the mechanical strength, wear resistance, and slide properties. Also, the fiber makes the material easier to conduct heat which means it could make the components live longer. Meanwhile, the plastic also has high resistance to hydrolysis even in boiling water and steam. So these exceptional properties make it possible for the material used in very critical conditions.

peek carbon fiber reinforced peek cf30
Properties
  • good machinability
  • high heat deflection temperature
  • good chemical resistance
  • very high stiffness
  • good dimensional stability
  • very high creep resistance
  • resistance to steam
Facts
Chemical designation

PEEK (Polyetheretherketone)


Colour

black


Density

1,38 g/cm3


Industries
  • aviation technology
  • chemical technology
  • mechanical engineering
  • vacuum industry
  • aotomotive technology
Stock Shapes

Rods&Tubes

PEEK CF30 Diameter Length Color
rods
Ø5....90mm
1000mm
black
tubes
Exterior: Ø 40… 2000 mm Interior: Ø 20… 1800 mm
150....1000mm
black

Sheets

PEEK CF30 Thickness Dimension Color
sheets
5....60mm
600*1200mm
black
PEEK CF30 Datasheet

Value

Parameter

Unit

Norm

Tensile strength

110

50 mm/min, 23°C

Mpa

DIN EN ISO 527

Compression strength

111

5%

Mpa

EN ISO 604

Modulus of elasticity

5900

1 mm/min, 23°C

Mpa

DIN EN ISO 527

Elongation at break

9

50mm/min

%

DIN EN ISO 527

Ball indentation hardness

290

/

Mpa

ISO 2039-1

Value

Parameter

Unit

Norm

Working temperature

260

long term

/

Glass transition temperature

145

/

DIN EN ISO 11357

Melting temperature

341

/

DIN EN ISO 11357

Specific heat

1.2

/

J/(g*K)

/

Thermal conductivity

0.67

/

W/(k*m)

 ISO 22007-4:2008

Thermal expansion

6

100-150°C

10-5*1/K

 DIN EN ISO 11359-1;2

Value

Parameter

Unit

Norm

Surface resistivity

10^3~10^14

 23°C

Ω

DIN IEC 60093

Volume resistivity

10^3~10^14

 23°C

Ω*cm

DIN IEC 60093

Value

Parameter

Unit

Norm

Flammability (UL94)

V0

/

/

DIN IEC 60695-11-10

Water absorption

0.03

24 h , 23°C

%

DIN EN ISO 62

Why Keward
  • Machining
  • table-saw Cut to Size
  • Enought Stock
  • free sample Free Sample
  • support Support

PEEK CF30 Machined Components

PEEK CF30 Precision Machining Service

Keward has 3-axis, 4-axis, 5-axis CNC milling center, CNC lathe, digital roughness tester, projector, and other equipment. With this equipment and our abundant experience, the components we provide can meet your requirements.

Cut to Size

Keward not only provides standard-sized semi-finished plastics but also offer customized size. We fully understand your concern about saving costs, boosting the project process, and improving machining efficiency.

Adequate plastics Stocks

Adequate Plastics Stocks

To quickly respond to the custom’s requests, we have abundantly stocked semi-finished materials no matter the virgin or the modified type. With highly efficient stock management, we ensure the large quantities or special demands are delivered in time.

Traceability

For each batch of production, Keward has the unique batch number, and for each order, we will delivery you the COC along with the goods. This will help our customers to trace the production and complete the quality system.

Free sample & proofing

Keward provides a wide range of high-performance engineering plastics and precise components. Customer satisfaction is the NO.1 thing for us. We can offer you free samples and proofing to help you to accelerate your material selection process and your project.

Technical support

Besides the wide range of high-performance plastic, one of the advantages of Keward is our knowledge and abundant application experience. We can give you suggestions about material selection, application of products, etc.
