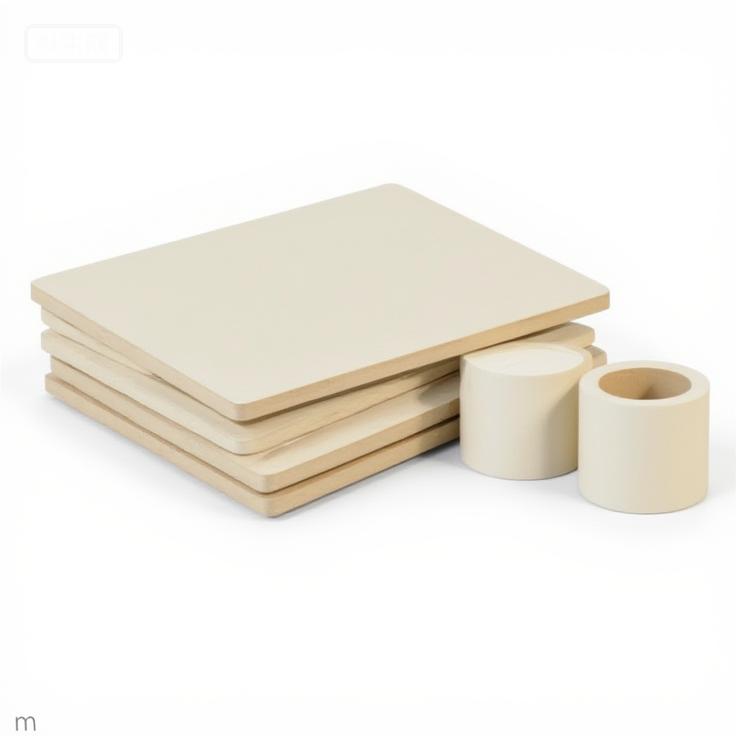

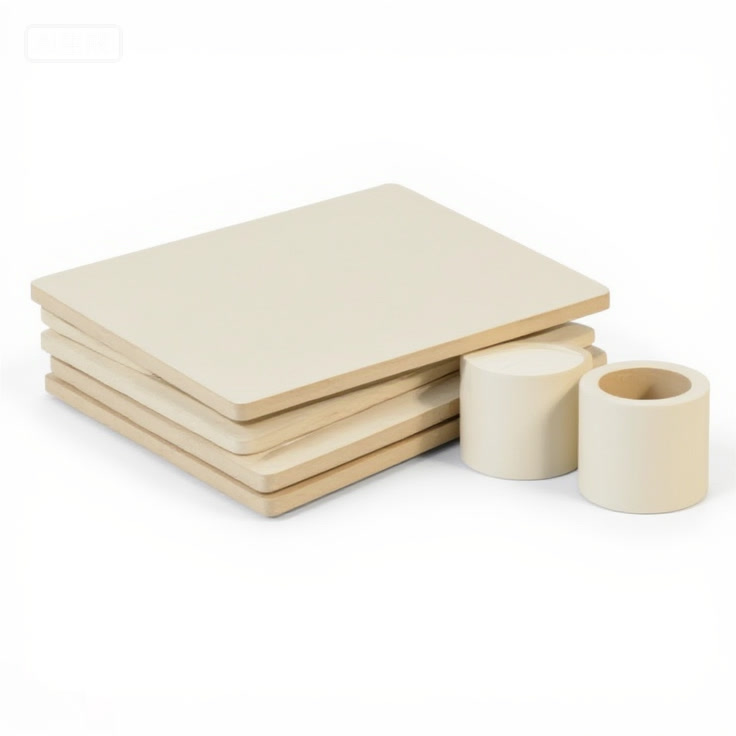

PEEK GF30 Rod, Sheet, Tube

Material Name: PEEK 30% glass fiber modified

Color: beige

Molding Method: extrusion / compression

Stock Shapes: rod / sheet / tube

Cut to Size: available

Free Sample: available

Payment: T/T, VISA, MasterCard, Western Union, PayPal

PEEK 30% glass fiber reinforcement

PEEK GF30 is a PEEK virgin reinforced plastic which is filled with 30% glass fiber. Compared to the unmodified PEEK, due to the glass fiber, the plastic exhibits very high stiffness and toughness. And the creep strength and dimensional stability are improved especially under the high temperature and pressure condition. This material is often used in the oil & gas industry because of its unique advantages, such as electronic insulation, great wear resistance, and very low water absorption.

PEEK glass firber reinforced
Properties
  • very good machinability
  • improve resistance under high temperature and pressure
  • high heat deflection temperature
  • good chemical resistance
  • very high rigidity
  • good dimensional stability
  • high creep resistance
  • good wear properties
Facts
Chemical designation

PEEK (Polyetheretherketone)


Colour

beige


Density

1,53 g/cm3


Industries
  • aviation technology
  • chemical technology
  • oil&gas industry
  • mechanical engineering
  • vacuum industry
  • automotive technology
  • electronic industry
Stock Shapes

Rods&Tubes

PEEK GF30 Diameter Length Color
rods
Ø5....100mm
1000mm
beige
tubes
Exterior: Ø 30… 380 mm Interior: Ø 20… 300 mm
1000mm
beige

Sheets

PEEK GF30 Thickness Dimension Color
sheets
5....80mm
500*1000mm
beige
PEEK GF30 Datasheet

Value

Parameter

Unit

Norm

Tensile strength

110

5 mm/min, 23°C

Mpa

DIN EN ISO 527

Compression strength

120

5%

Mpa

EN ISO 604

Modulus of elasticity

6100

1 mm/min, 23°C

Mpa

DIN EN ISO 527

Elongation at break

5

5mm/min

%

DIN EN ISO 527

Ball indentation hardness

275

/

Mpa

ISO 2039-1

Value

Parameter

Unit

Norm

Working temperature

260

long term

/

Glass transition temperature

150

/

DIN EN ISO 11357

Melting temperature

341

/

DIN EN ISO 11357

Specific heat

1.0

/

J/(g*K)

/

Thermal conductivity

0.31

/

W/(k*m)

ISO 22007-4:2008

Thermal expansion

5

100-150°C

10-5*1/K

DIN EN ISO 11359-1;2

Value

Parameter

Unit

Norm

Surface resistivity

10^14

 23°C

Ω

DIN IEC 60093

Volume resistivity

10^14

 23°C

Ω*cm

DIN IEC 60093

Electric strength

36

23°C

kV*mm-1

ISO 60243-1

Value

Parameter

Unit

Norm

Flammability (UL94)

V0

/

/

DIN IEC 60695-11-10

Water absorption

0.03

24 h , 23°C

%

DIN EN ISO 62

Why Keward
  • Machining
  • table-saw Cut to Size
  • Enought Stock
  • free sample Free Sample
  • support Support

PEEK GF30 Machined Components

PEEK GF30 Precision Machining Service

Keward has 3-axis, 4-axis, 5-axis CNC milling center, CNC lathe, digital roughness tester, projector, and other equipment. With this equipment and our abundant experience, the components we provide can meet your requirements.

Cut to Size

Keward not only provides standard-sized semi-finished plastics but also offer customized size. We fully understand your concern about saving costs, boosting the project process, and improving machining efficiency.

Adequate plastics Stocks

Adequate Plastics Stocks

To quickly respond to the custom’s requests, we have abundantly stocked semi-finished materials no matter the virgin or the modified type. With highly efficient stock management, we ensure the large quantities or special demands are delivered in time.

Traceability

For each batch of production, Keward has the unique batch number, and for each order, we will delivery you the COC along with the goods. This will help our customers to trace the production and complete the quality system.

Free sample & proofing

Keward provides a wide range of high-performance engineering plastics and precise components. Customer satisfaction is the NO.1 thing for us. We can offer you free samples and proofing to help you to accelerate your material selection process and your project.

Technical support

Besides the wide range of high-performance plastic, one of the advantages of Keward is our knowledge and abundant application experience. We can give you suggestions about material selection, application of products, etc.
